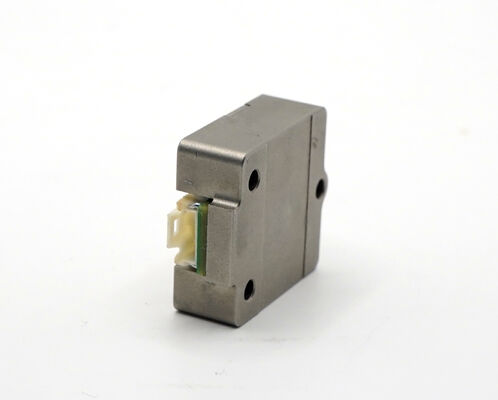

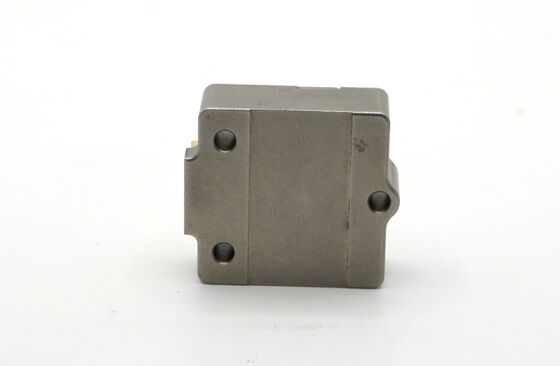

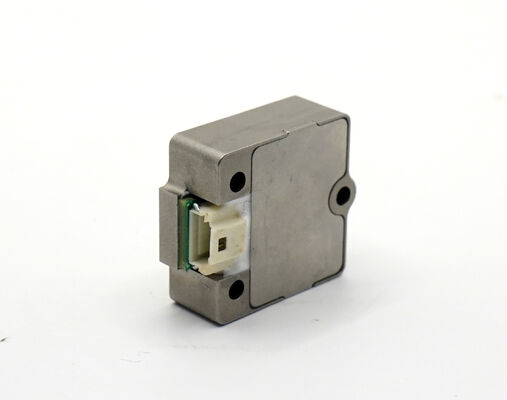

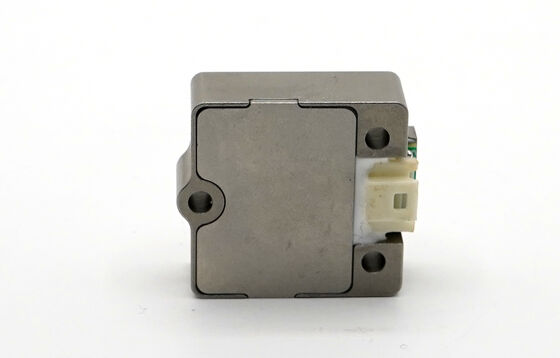

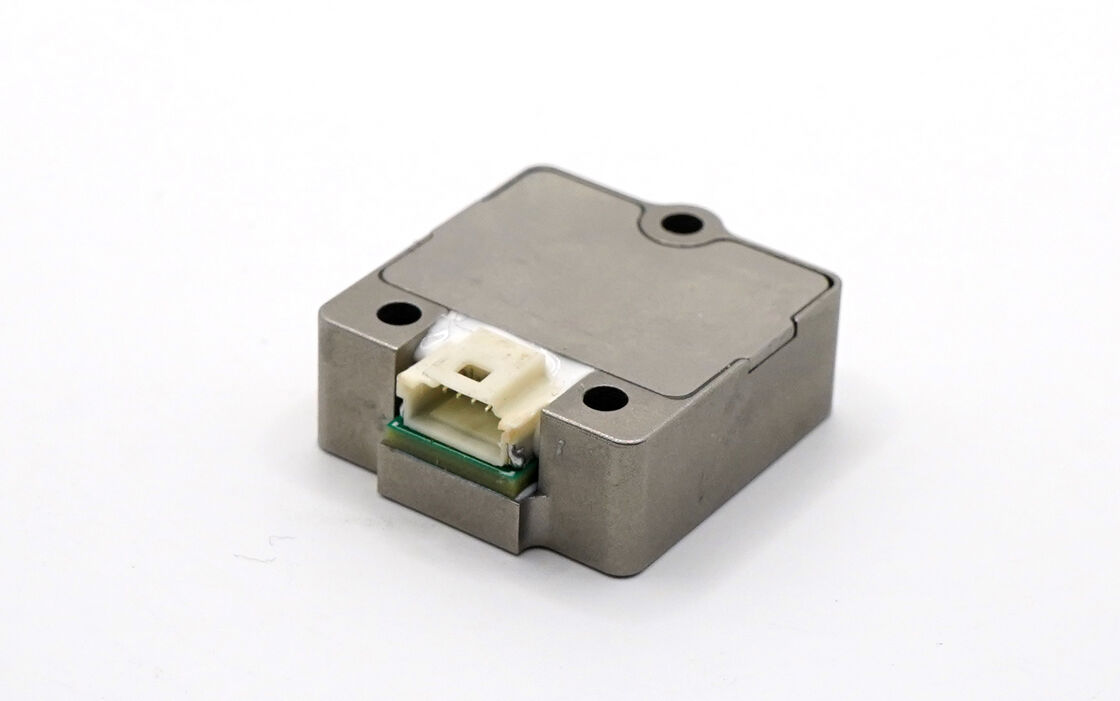

Customizable Inertial Measurement Unit with 3°/hr Bias Stability

Name: Customizable Inertial Measurement Unit with 3°/hr Bias Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU6-36
Price: 3,003.00 USD
Availability: InStock

Merknaam:	FIREPOWER
Modelnummer:	IMU6-36
MOQ:	1
Betalingsvoorwaarden:	L/C, T/T
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Meetbereik:

±480°/s

Onstabiliteit met nul-bias:

≤ 3°/h

Willekeurige wandeling:

≤0,25°/√u

Herhaalbaarheid zonder bias:

≤ 5°/h

Interface:

Uart

Gewicht:

18 g

Verpakking Details:

spons + doos

Levering vermogen:

500/maand

Markeren:

customizable inertial measurement unit

IMU with 3°/hr stability

accelerometer gyro sensor

Productbeschrijving

Customizable Inertial Measurement Unit with 3°/hr Bias Stability

IMU6-36 delivers high-accuracy motion tracking, capable of handling a variety of complex applications. With a bandwidth of over 100Hz and a high-resolution angular rate range of ±480°/s, the IMU6-36 is designed for systems requiring rapid and precise motion feedback, such as real-time control systems and precision instrumentation.

Gyroscope Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	°/s	Configurable	±480
Zero-bias instability	°/h	Allan variance	≤3
Zero bias stability	°/h	10s smooth, RMS, normal temperature	≤8
Zero bias variation at full temperature	°/h	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤150
Random walk	°/√h	Allan variance	≤0.25
Zero-bias repeatability	°/h	Q = 6, normal temperature	≤5
Scale factor nonlinearity	ppm	Normal temperature	≤50
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Accelerometer Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	g	Configurable 2 ~ 16g	±16
Zero bias stability	mg	10s smooth, RMS, normal temperature	≤0.1
Zero bias variation at full temperature	mg	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤2.5
Zero-bias repeatability	mg	Q = 6, normal temperature	≤0.1
Scale factor nonlinearity	ppm	Normal temperature, ± 1 g	≤200
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Power Supply Requirements

Parameter	Unit	IMU6-36
Voltage	V	5±0.3
Starting current	mA	100
Steady-state power consumption	W	≤0.25
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-36
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Additional Specifications

Parameter	Unit	IMU6-36
Weight	g	18±1
Start time	s	≤2

Outline Drawing
