Real-Time Inertial Measurement Unit for Robotics and Automation

Name: Real-Time Inertial Measurement Unit for Robotics and Automation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU6-36
Price: 3,003.00 USD
Availability: InStock

Merknaam:	FIREPOWER
Modelnummer:	IMU6-36
MOQ:	1
Betalingsvoorwaarden:	L/C, T/T
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Onstabiliteit met nul-bias:

≤ 3°/h

Meetbereik:

480°/sec

Hoek willekeurige gang:

0,25°/√ u

Meetbereik (versnellingsmeter):

Configureerbaar 2 ~ 16g

Nul-bias herhaalbaarheid:

≤ 5°/h

Bandbreedte:

≥ 100 Hz

Gewicht:

18 g

Spanning:

5±0,3V

Interface:

Uart

Meetbereik:

±480°/s

Bias herhaalbaarheid:

≤ 5°/h

Kruiskoppeling:

≤0,1%

Niet-lineariteit van de schaalfactor:

≤50ppm

Rimpeling:

100mV

Verpakking Details:

spons + doos

Levering vermogen:

500/maand

Markeren:

Real-Time IMU for robotics

Inertial Measurement Unit sensor

Gyro sensor for automation

Productbeschrijving

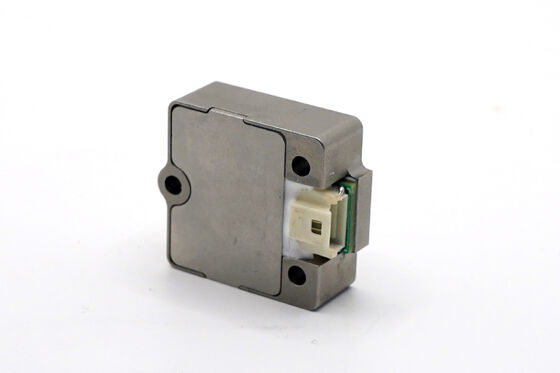

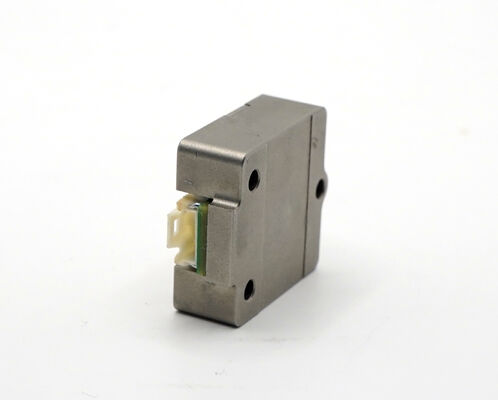

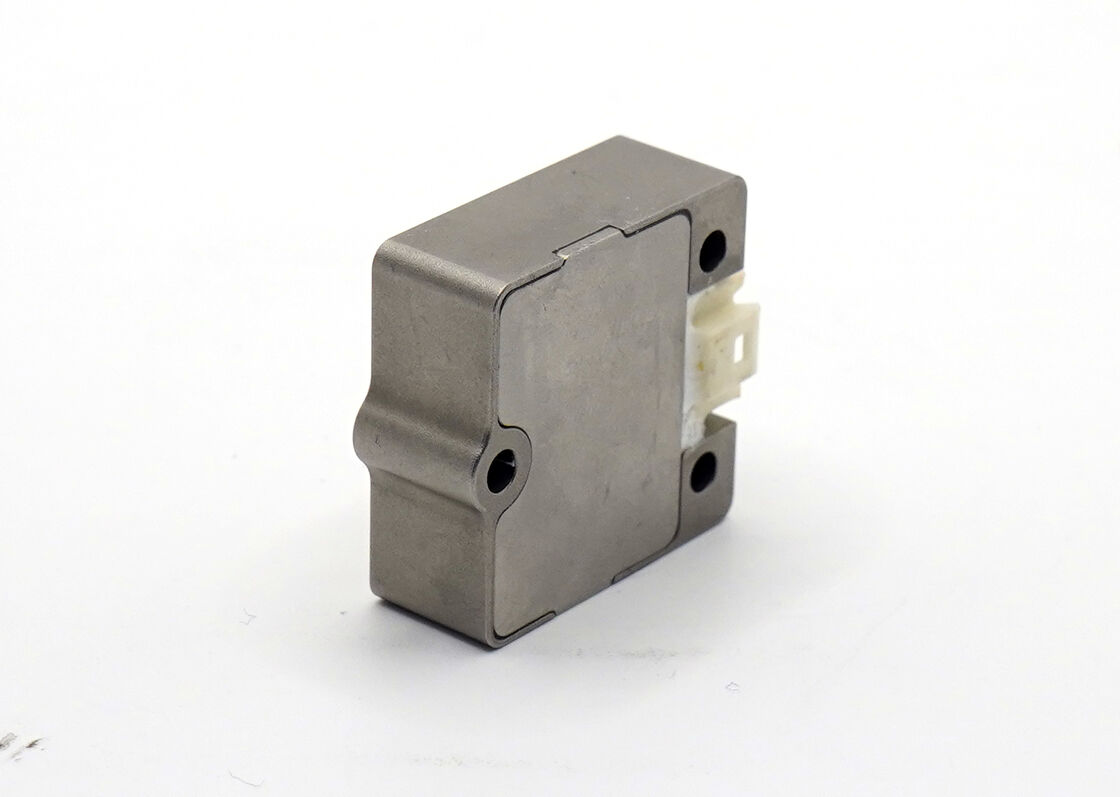

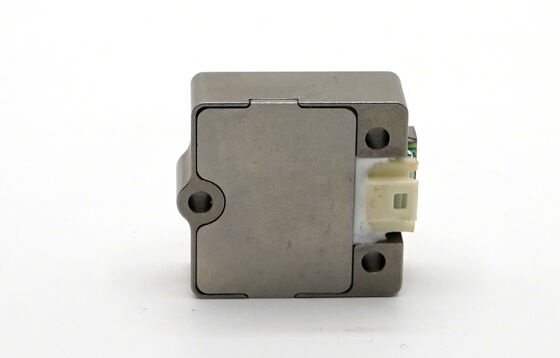

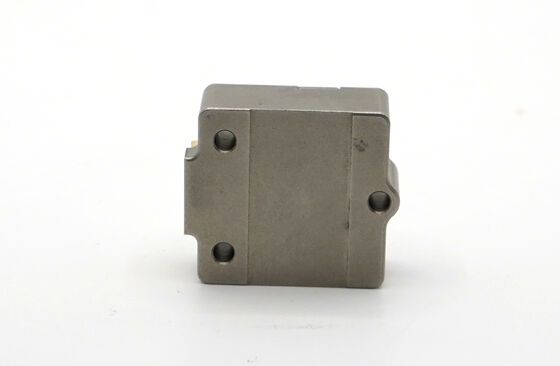

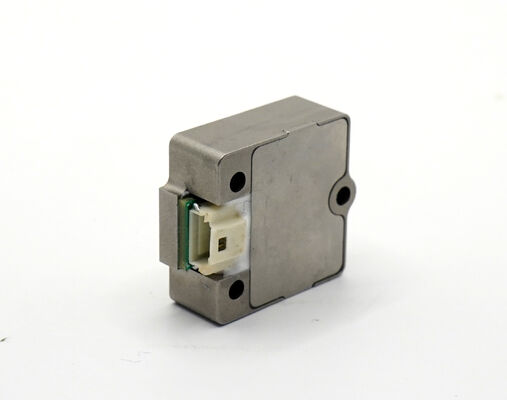

Real-Time Inertial Measurement Unit for Robotics and Automation

The IMU6-36 Inertial Measurement Unit delivers precise measurements of three-axis angular rates and accelerations. This rugged unit integrates a 3-axis gyroscope, 3-axis accelerometer, temperature sensor, and signal processing board, outputting data with advanced error compensations including temperature and installation misalignment angle corrections. Designed for applications requiring high stability and reliability in aerospace, automotive, and robotics industries.

Gyroscope Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	°/s	Configurable	±480
Zero-bias instability	°/h	Allan variance	≤3
Zero bias stability	°/h	10s smooth, RMS, normal temperature	≤8
Zero bias variation at full temperature	°/h	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤150
Random walk	°/√h	Allan variance	≤0.25
Zero-bias repeatability	°/h	Q = 6, normal temperature	≤5
Scale factor nonlinearity	ppm	Normal temperature	≤50
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Accelerometer Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	g	Configurable 2 ~ 16g	±16
Zero bias stability	mg	10s smooth, RMS, normal temperature	≤0.1
Zero bias variation at full temperature	mg	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤2.5
Zero-bias repeatability	mg	Q = 6, normal temperature	≤0.1
Scale factor nonlinearity	ppm	Normal temperature, ± 1 g	≤200
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Power Supply Requirements

Parameter	Unit	IMU6-36
Voltage	V	5±0.3
Starting current	mA	100
Steady-state power consumption	W	≤0.25
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-36
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Additional Specifications

Parameter	Unit	IMU6-36
Weight	g	18±1
Start time	s	≤2

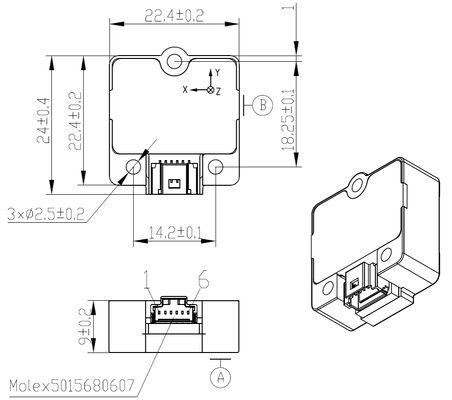

Outline Drawing
