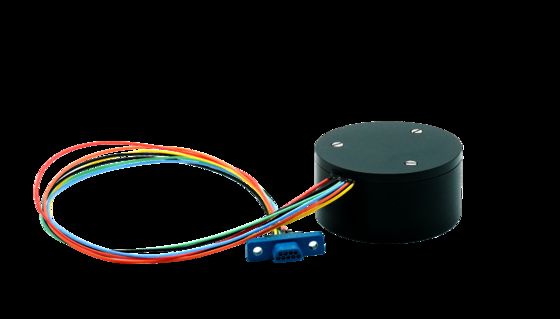

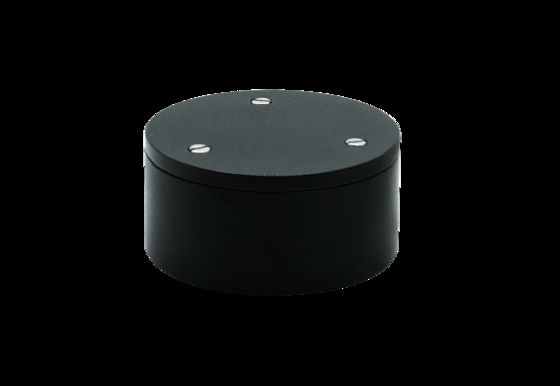

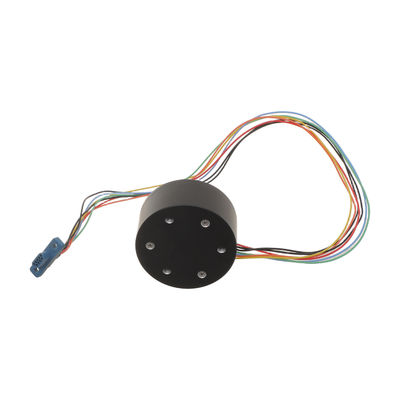

Fiber Optic Gyroscope ±300°/s Range ≤0.5°/h Bias

Fiber Optic Gyroscope ±300°/s Range ≤0.5°/h Bias

Merknaam:	Firepower
Modelnummer:	MFOG-40
MOQ:	1
Prijs:	1350$
Betalingsvoorwaarden:	L/C, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Bereik:

± 300 (°/s

Nul-bias stabiliteit ((10s, 1σ):

≤0,5 °/H

Hoekige willekeurige wandeling:

≤0,02 °/H

3DB bandbreedte:

≥300Hz

Zero-bias herhaalbaarheid ((1σ):

≤0,5 °/H

Schaalfactor niet -lineariteit:

≤500ppm

Dimensie:

φ40x20mm

Stroomverbruik:

≤1,5 W

Verpakking Details:

Spons + doos

Levering vermogen:

500/maand

Markeren:

Fiber Optic Gyroscope 300°/s range

Fiber Optic Gyro 0.5°/h bias

Fiber Optic Gyroscope high precision

Productbeschrijving

Low Bias Angular Rate Sensor Fiber Gyroscope Meter

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that seamlessly integrates optical, mechanical, and electronic technologies for precise measurement applications.

Key Features

Simple structure with no moving or wear parts
Fast startup and compact design (φ40*20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Product Overview

Based on the Sagnac effect, this gyroscope utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. It detects angular velocity by monitoring the phase difference between counter-propagating light beams, processing this information through sophisticated electronics for precise feedback in control or measurement systems.

Designed for reliability, the gyroscope features a compact, lightweight structure with no moving parts, ensuring long-term stability. Its fast start-up capability and small size make it suitable for attitude control, navigation, and motion measurement across aerial, marine, and ground platforms.

Power Requirements

Parameter	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

Node number	Color	Definition
1	Tangerine	RS422 R-
2	Blue	RS422 R+
3	Green	RS422 T+
4	Yellow	RS422 T-
5	Black	GND
6	Black	GND
7	Red	5V

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

Fizoptika VG1703 Fiber Optic Gyroscope technical diagram

Fizoptika VG1703 Fiber Optic Gyroscope dimensional drawing
