Wide Range MEMS Gyroscope Chip with 250Hz Bandwidth 800 deg/s Measuring Range and 24-bit SPI Output for High Speed Stabilization

Name: Wide Range MEMS Gyroscope Chip with 250Hz Bandwidth 800 deg/s Measuring Range and 24-bit SPI Output for High Speed Stabilization
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ800HC-P2
Price: 10000 USD
Availability: InStock

Merknaam:	Firepower
Modelnummer:	MGZ800HC-P2
MOQ:	1 stuk
Prijs:	Onderhandelbaar
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	500 stuks per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

bandbreedte:

250hz

Biasstabiliteit:

<0,2°/u

Hoekige willekeurige wandeling:

<0,1°/√u

Voedingsspanning:

5 ± 0,25 V

Nauwkeurigheid van de uitvoer:

24 bits

Meetbereik:

800 graden/sec

Verpakking Details:

Antistatische spons met ESD-beschermdoos, exportkarton

Levering vermogen:

500 stuks per maand

Markeren:

800dps Wide Range MEMS Gyro Chip

Firepower High Speed Gyro 250Hz

SPI Angular Rate Sensor 24bit

Productbeschrijving

Wide Range MEMS Gyroscope Chip 250Hz Bandwidth SPI Output for High Speed Stabilization

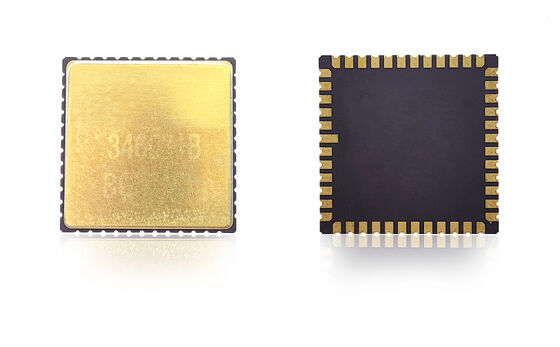

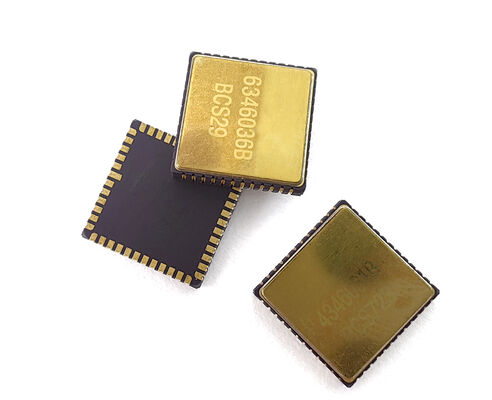

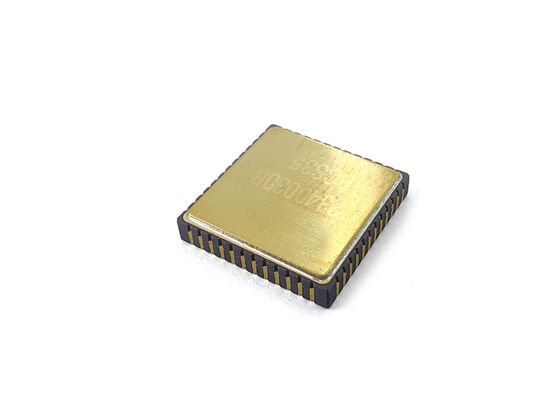

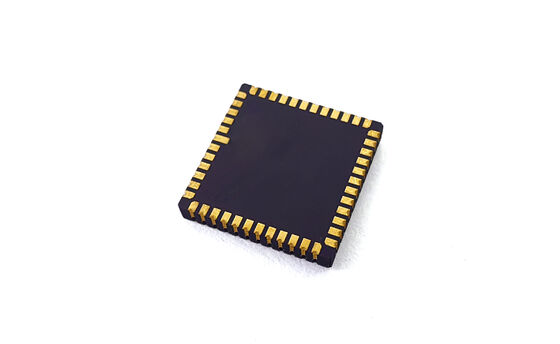

Firepower MGZ800HC-P2 Wide Range MEMS Gyroscope Chip

Product Overview

The MGZ800HC-P2 is a wide dynamic range MEMS gyroscope chip engineered for applications requiring angular rate measurement up to 800°/s. With 250Hz bandwidth and 24-bit SPI digital output, it delivers exceptional fast-motion tracking performance. Low bias stability of <0.2°/h and ARW of <0.1°/√h ensure reliable measurements even during rapid angular movements. Designed for high-speed gimbal stabilization, antenna tracking systems, and industrial servo control applications.

Technical Specifications

Performance	Unit	MGZ800HC-P2
Range	deg/s	800
Band Width @3DB	Hz	250
Output accuracy (digital SPI)	bits	24
Output rate (ODR)	Hz	12K
Delay	ms	<1
Bias stability	deg/hr(1σ)	<0.2
Bias stability (1σ 10s)	deg/hr(1σ)	<2
Bias error over temperature (1σ)	deg/hr(1σ)	<30
Scale factor at 25°C	lsb/deg/s	10000
Scale factor repeatability (1σ)	ppm(1σ)	<100
Scale factor vs temperature (1σ)	ppm(1σ)	<300
Scale factor non-linearity (1σ)	ppm	<300
Angular random walk (ARW)	°/√h	<0.1
Noise (Peak to Peak)	deg/s	<0.5
G Value sensitivity	°/hr/g	<3

Environmental Suitability

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 18g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 45mA
Power-on time (valid data): 750ms
Sensor Resonant Frequency: 10.5k-13.5kHz

Target Applications

High-speed pan-tilt-zoom (PTZ) camera stabilization
Satellite communication antenna tracking systems
Industrial robotic arm fast joint motion control
Marine dynamic positioning and stabilization
Aerospace flight control surface monitoring

Key Advantages

Compact MEMS design with low power consumption for easy system integration
24-bit high-resolution digital SPI output with customizable ODR up to 12kHz
Excellent shock and vibration resistance for harsh environment operation
Factory calibrated with temperature compensation across full operating range
OEM customization available for specific bandwidth, range, and interface requirements
