Industrial Fiber Optic Gyroscope FOG with ±300°/s Range, ≤0.8°/h Stability and Micro-Nano Integrated Design

Name: Industrial Fiber Optic Gyroscope FOG with ±300°/s Range, ≤0.8°/h Stability and Micro-Nano Integrated Design
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Merknaam:	Firepower
Modelnummer:	MFOG-40
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Maximale hoeksnelheid:

±300°/s

Biasstabiliteit:

≤ 0,8°/h

Nul vooringenomenheid:

≤ 0,8°/h

Willekeurige wandeling-efficiëntie:

≤ 0,02°/√h

Voedingsspanning:

+5V

Uitvoertype:

Analoog

bandbreedte:

≥300Hz

Dimensie:

φ40x20mm

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

Industrial fiber optic gyroscope with ±300°/s range

Fiber optic gyro with ≤0.8°/h stability

Micro-nano integrated fiber optic gyroscope

Productbeschrijving

Industrial Robot Fiber Optic Gyroscope FOG High Reliability for AGV

Competitive Comparison: MFOG-40 vs Fizoptika VG1703

Parameter	MFOG-40	Fizoptika VG1703
Measurement Range	±300°/s	±130°/s / ±150°/s / ±300°/s
Zero Bias Stability	≤0.8°/h	≤1°/h
Angular Random Walk	≤0.02°/√h	0.008–0.02°/√h
Bias Repeatability	≤0.8°/h	≤1°/h
Scale Factor Nonlinearity	≤500 ppm	≤500 ppm
Bandwidth	≥300 Hz	up to 1 kHz
Power Consumption	≤1.5W	0.25–0.5W
Size	φ40*20 mm	φ40*12–19 mm
Weight	≤40g	18–35g
Operating Temp	-40 ~ +70°C	-40 ~ +70°C
Vibration	20g	up to 30g

Product Overview

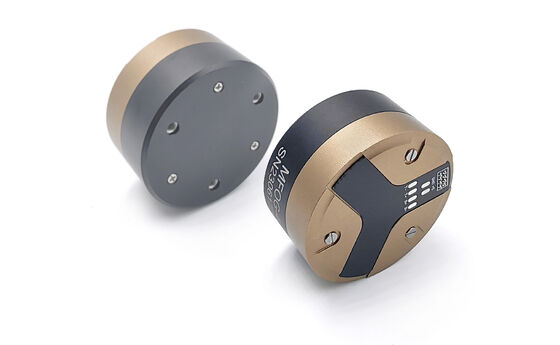

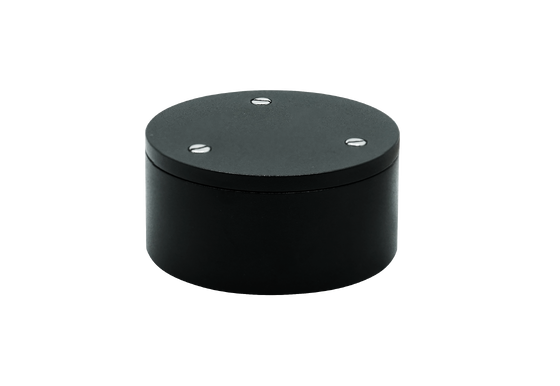

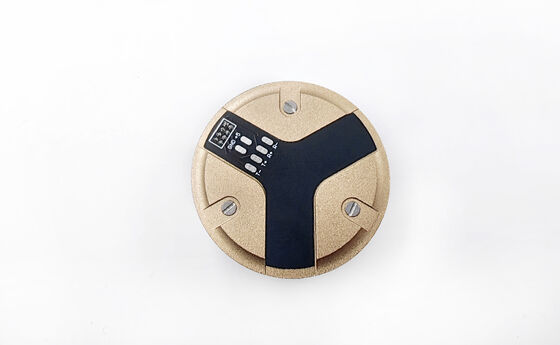

The MFOG-40 Micro-Nano Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac effect, designed for precise motion sensing and attitude control applications.

By integrating advanced micro-nano fiber optic technology, optical path modules, and signal processing circuits, the MFOG-40 delivers high accuracy, low drift, and excellent stability in a compact and lightweight form factor.

With no moving parts, this fiber optic gyroscope ensures long lifespan, high reliability, and maintenance-free operation, making it ideal for inertial navigation systems (INS), UAVs, robotics, and industrial automation.

Technical Specifications

Parameter	Specification
Measurement Range	±300°/s
Scale Factor	3600 LSB/(°/s)
Scale Factor Nonlinearity	≤500 ppm
Zero Bias Stability (10s, 1σ)	≤0.8°/h
Zero Bias Repeatability	≤0.8°/h
Angular Random Walk	≤0.02°/√h
Bias Stability (Full Temp)	≤1.5°/h
Bandwidth	≥300 Hz
Power Supply	5V ±0.15V
Power Consumption	≤1.5W

Applications

Inertial Navigation Systems (INS)
UAV Flight Control & Stabilization
Robotics & Autonomous Systems
Antenna Stabilization Platforms
Industrial Motion Control
Marine & Land Navigation
Electro-Optical Tracking Systems
