Optical Fiber Coil F50 Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

Merknaam:	Firepower
Modelnummer:	F50 Vrijstaande glasvezelspoel
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Lengte:

260±5m

Optische vezel:

80/135 μm optische vezel

Lagen:

China

Overspraak:

≤-22dB

Invoegverlies:

≤0,2dB

Constante temperatuurafwijkingsstabiliteit (10s smoothing):

≤0,3°/u

Geometrische afmetingen:

29,0 mm (binnendiameter) × 39,0 mm (buitendiameter) × 9,2 mm (h)

Temperatuurbereik:

-45–80°C

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

Fiber optic gyro closed-loop coil

50mm optical fiber coil

F50 fiber gyro navigation component

Productbeschrijving

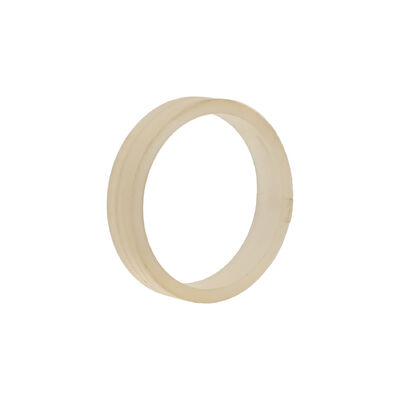

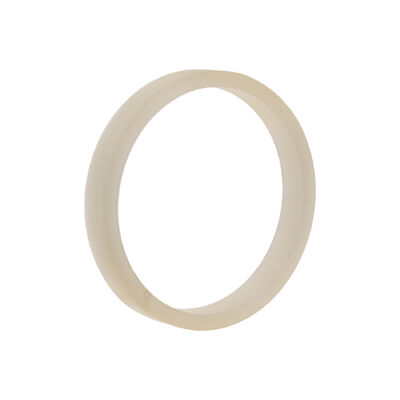

Optical Fiber Coil F50 Closed-Loop 50mm

Designed specifically for closed-loop fiber optic gyroscopes with a 50mm diameter, this fiber coil delivers reliable medium-precision performance. Manufactured using 135µm thin-diameter fiber and a robust UV-cured adhesive, the 36-layer coil ensures minimal signal distortion.

It maintains a full-temperature crosstalk of ≤ -20 dB and exceptional bias stability, making it ideal for systems requiring consistent performance in variable environments.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

Multi-pole symmetric winding method
135µm thin diameter optical fibers
UV-cured adhesive construction
Excellent temperature and vibration performance
Mass-producible with consistent quality

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
