High Symmetry Fiber Optic Coil for 50mm Fiber Optic Gyroscope FOG Sensor

Merknaam:	Firepower
Modelnummer:	F50 Vrijstaande glasvezelspoel
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Lengte:

260±5m

Optische vezel:

80/135 μm optische vezel

Lagen:

China

Overspraak:

≤-22dB

Invoegverlies:

≤0,2dB

Constante temperatuurafwijkingsstabiliteit (10s smoothing):

≤0,3°/u

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

50mm fiber optic gyroscope coil

high symmetry FOG sensor coil

fiber optic gyro coil with warranty

Productbeschrijving

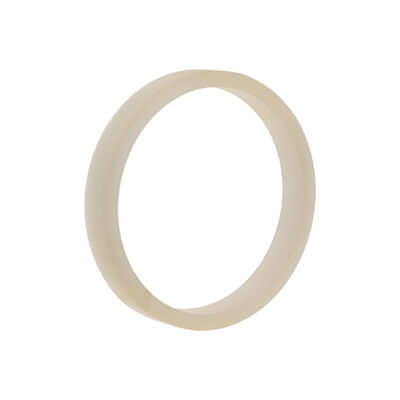

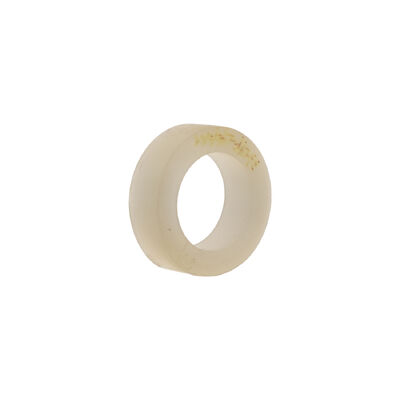

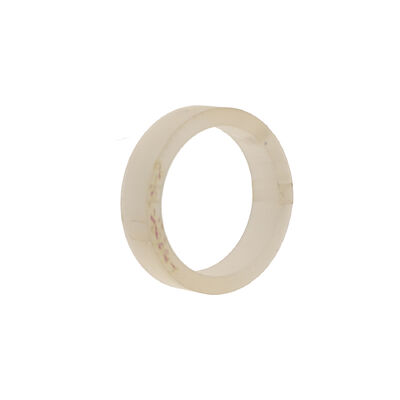

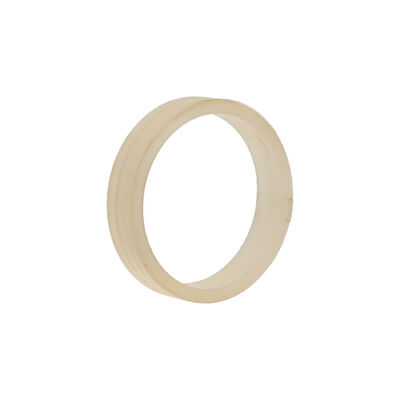

High Symmetry Fiber Optic Coil for 50mm Fiber Optic Gyroscope FOG Sensor

With mass production capabilities, this φ 50 fiber optic coil combines low crosstalk and low insertion loss to provide an affordable yet high-performance solution for fiber optic gyroscopes in commercial and industrial applications.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This model of optic fiber coil adopts a multi-pole symmetric winding method and uses 135um thin diameter optical fibers and UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.

Main Performance Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Information

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
