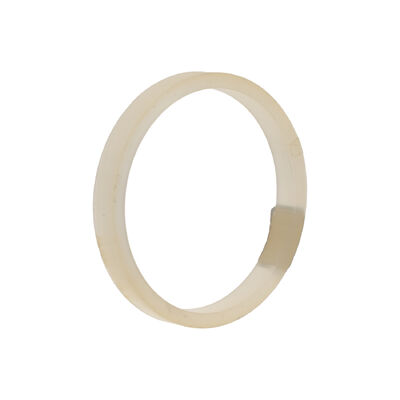

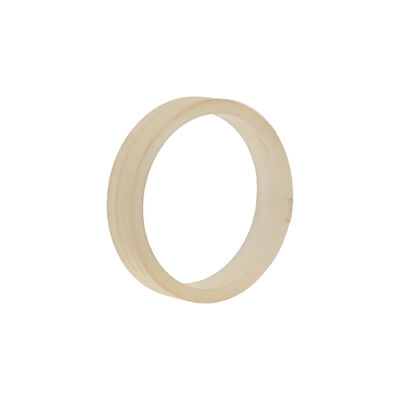

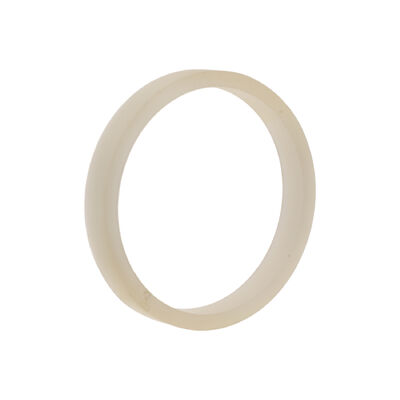

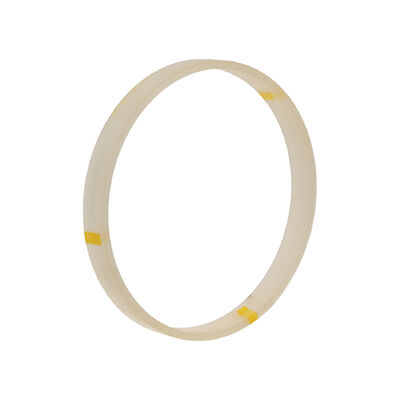

Free Standing PM Fiber Coil F50 for Closed-loop Φ120 Fiber Optic Gyroscope with Quadrupole Winding

Merknaam:	Firepower
Modelnummer:	F50 Vrijstaande glasvezelspoel
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Lengte:

260±5m

Optische vezel:

80/135 μm optische vezel

Lagen:

China

Overspraak:

≤-22dB

Invoegverlies:

≤0,2dB

Constante temperatuurafwijkingsstabiliteit (10s smoothing):

≤0,3°/u

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

PM fiber coil F50 gyroscope

closed-loop Φ120 fiber optic gyro

quadrupole winding fiber optic coil

Productbeschrijving

Free Standing PM Fiber Coil F50 for Closed-loop Φ120 Fiber Optic Gyroscope

Our φ50 low-precision (mid-accuracy) fiber coil is engineered specifically for closed-loop FOG systems. Utilizing 135µm thin-diameter fiber technology, this coil delivers superior winding density and exceptional temperature performance. The design minimizes crosstalk and bias drift, ensuring reliable gyroscope heading maintenance under thermal stress conditions.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter requirements.

Product Features

Multi-pole symmetric winding method for optimal performance
135µm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass production capability with consistent product quality
Superior winding density for enhanced system reliability

Technical Specifications

Feature	Unit	Specification
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45 to 80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optic fiber coils. Geometric dimensions, length specifications, and performance parameters can be tailored to meet specific application requirements and system integration needs.
