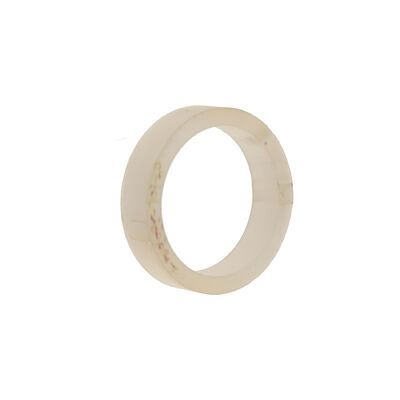

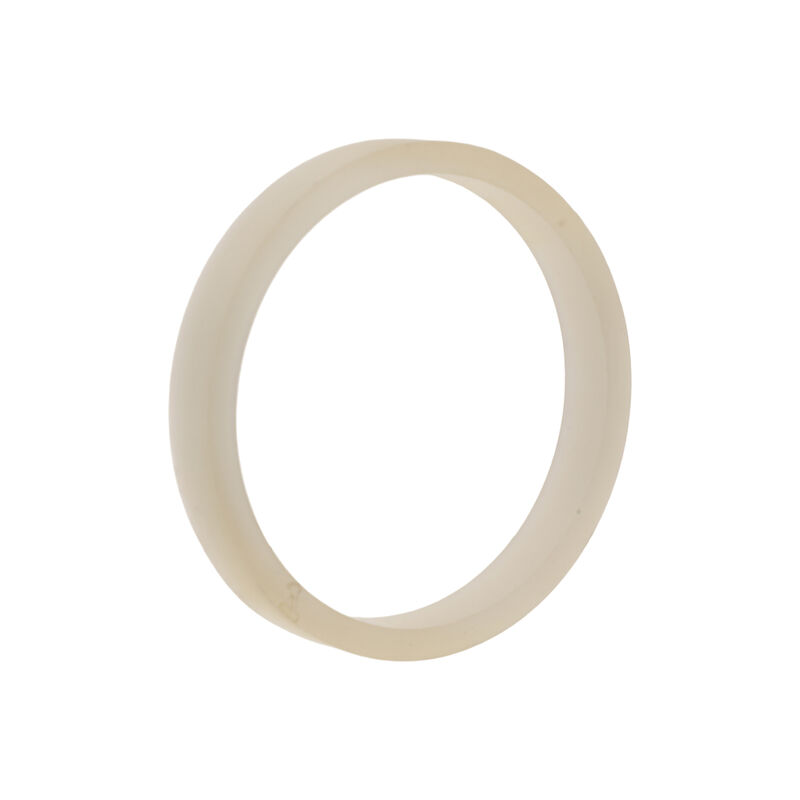

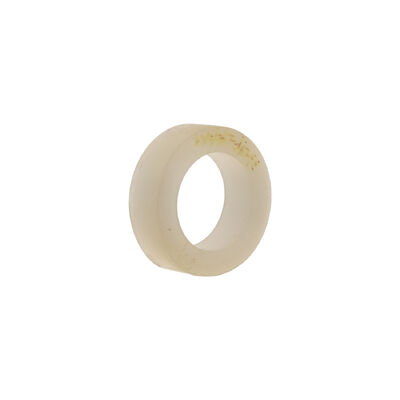

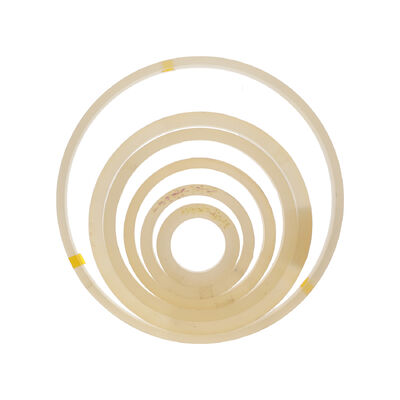

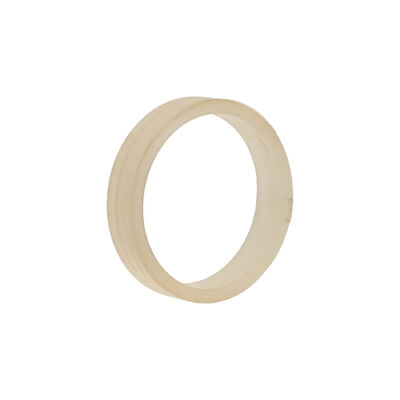

High Precision Polarization-Maintaining Fiber Coil for FOG Navigation System

Merknaam:	Firepower
Modelnummer:	F50 Vrijstaande glasvezelspoel
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Lengte:

260±5m

Optische vezel:

80/135 μm optische vezel

Lagen:

China

Overspraak:

≤-22dB

Invoegverlies:

≤0,2dB

Constante temperatuurafwijkingsstabiliteit (10s smoothing):

≤0,3°/u

Volledige temperatuur nul bias piek-tot-piek (10s smoothing):

≤ 1,5°/h

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

Polarization-maintaining fiber coil for FOG

High precision fiber optic gyro coil

FOG navigation system fiber coil

Productbeschrijving

High Precision Polarization-Maintaining Fiber Coil for FOG Navigation System

This optical fiber coil is engineered for high-performance gyroscope systems. Utilizing advanced winding technology, it delivers exceptional consistency and long-term reliability. Customizable options are available to meet specific application requirements.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil model employs a multi-pole symmetric winding method using 135μm thin diameter optical fibers and UV-cured adhesive. The coil demonstrates excellent temperature and vibration performance, and supports mass production with consistent product quality.

Performance Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

Geometric dimensions, length, and performance specifications of the optical fiber coil can be customized according to specific application requirements.
