F50 Optical Fibre Coil Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

Merknaam:	Firepower
Modelnummer:	F50 Vrijstaande glasvezelspoel
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Lengte:

260±5m

Optische vezel:

80/135 μm optische vezel

Lagen:

China

Overspraak:

≤-22dB

Invoegverlies:

≤0,2dB

Constante temperatuurafwijkingsstabiliteit (10s smoothing):

≤0,3°/u

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

F50 optical fibre coil 50mm

Fiber optic gyro closed-loop coil

Inertial navigation system fiber coil

Productbeschrijving

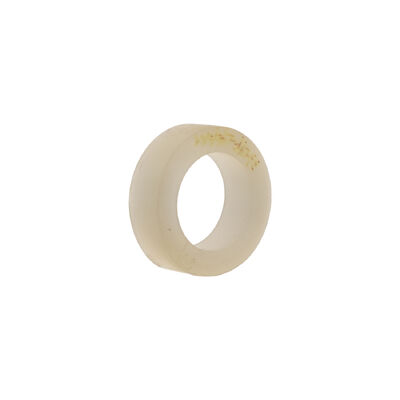

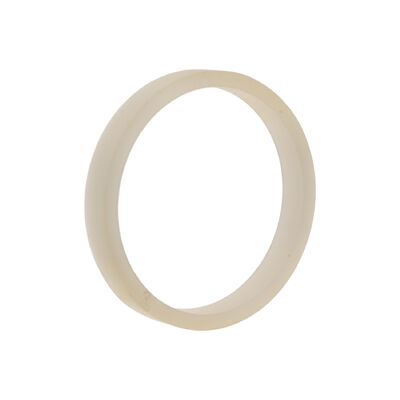

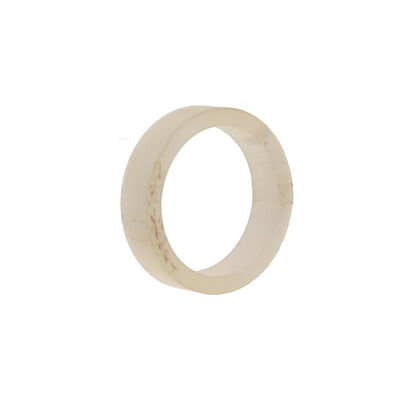

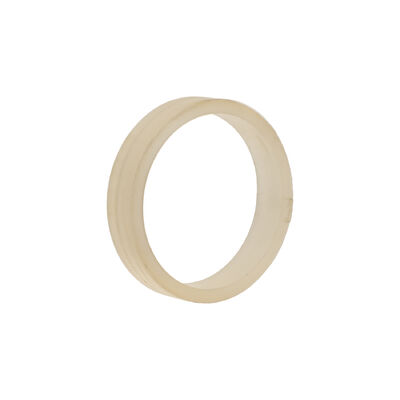

F50 Optical Fibre Coil Closed-Loop 50mm

Specialized φ 50 low-precision fiber optic coil engineered for closed-loop fiber optic gyroscopes with advanced manufacturing techniques.

Product Overview

Our φ 50 low-precision fiber optic coil features multi-pole symmetric winding technology, delivering superior temperature stability, minimal insertion loss, and exceptional vibration resistance for demanding inertial navigation applications.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations in inertial navigation systems.

Key Features

Multi-pole symmetric winding method for optimal performance
135μm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass production capability with consistent product quality
Superior thermal stability and minimal signal loss

Technical Specifications

Feature	Unit	Specification
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45 to 80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

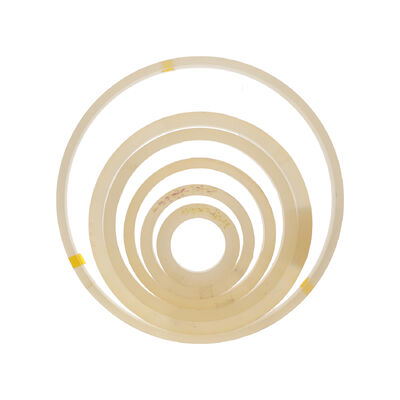

Customization Options

We offer comprehensive customization services. Geometric dimensions, fiber length, and performance parameters can be tailored to meet your specific application requirements and system integration needs.
