High Accuracy Fiber Optic Gyroscope with 1.5 °/h Bias for Mobile Mapping Fizoptika VG191AD

Name: High Accuracy Fiber Optic Gyroscope with 1.5 °/h Bias for Mobile Mapping Fizoptika VG191AD
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Merknaam:	Firepower
Modelnummer:	MFOG-24
MOQ:	1
Prijs:	700$
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Dynamisch bereik:

±500°/s

nul bias stabiliteit:

≤ 1,5°/h

Biasherhaalbaarheid:

≤ 1,5°/h

Afmetingen:

24 mm × 39 mm

bandbreedte:

>300Hz, @3dB

Willekeurige wandeling:

≤0,03°/√h(1σ)

Verpakking Details:

BOX+Sponje

Levering vermogen:

500/maand

Markeren:

Fiber Optic Gyroscope with 1.5°/h bias

Mobile Mapping Fiber Optic Gyro

Fizoptika VG191AD Gyroscope

Productbeschrijving

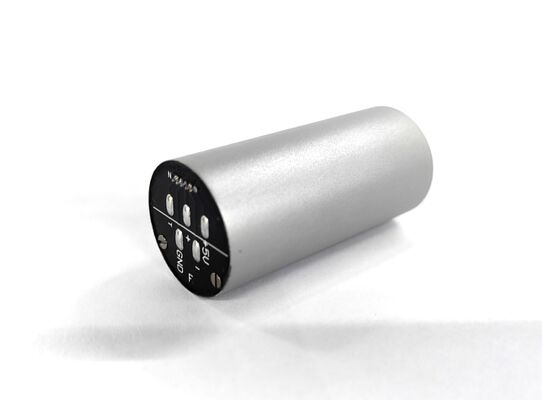

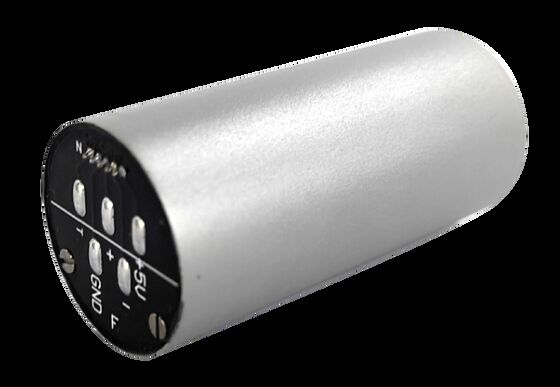

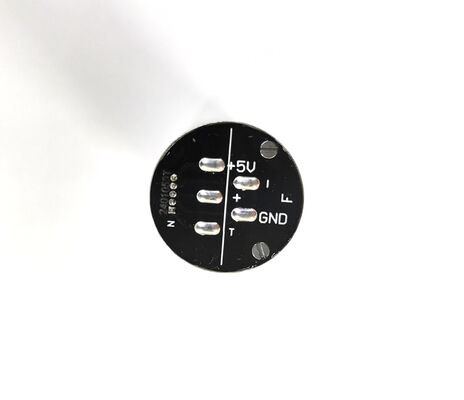

High Accuracy Fiber Optic Gyroscope with 1.5°/h Bias for Mobile Mapping

The MFOG-24 Micro-Nano Fiber Optic Gyroscope delivers exceptional low drift and high bandwidth performance, specifically designed for INS and AHRS integration. With zero-bias repeatability ≤1.5°/h and angular random walk ≤0.03°/√h, this tactical-grade inertial sensor meets the most demanding navigation requirements.

Compact Design for Easy Integration

The gyroscope's compact φ24mm * 39mm form factor enables seamless integration into various systems including:

UAV autopilots and flight control systems
Tactical missile guidance and navigation systems
Precision surveying and mapping instruments
Autonomous marine vessel navigation

Built with solid-state fiber optic technology and no moving parts, the MFOG-24 ensures maintenance-free long-term operation with exceptional reliability.

Technical Performance Specifications

Serial Number	Performance Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5±0.15	5±0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24 * 39
