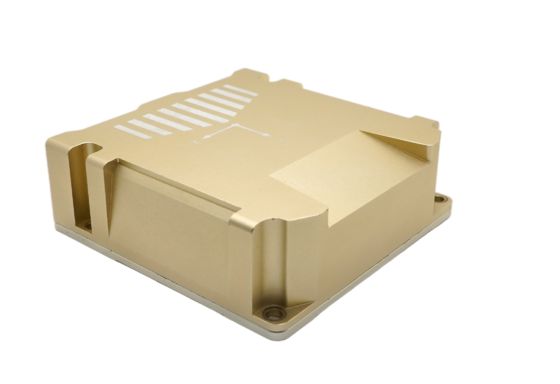

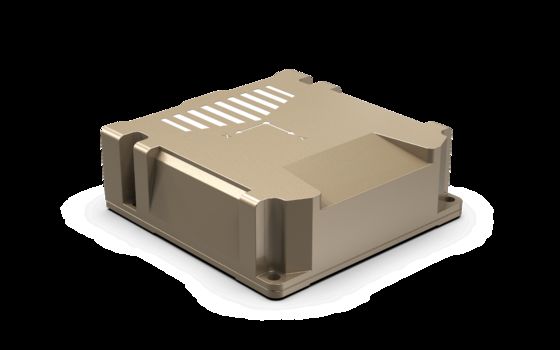

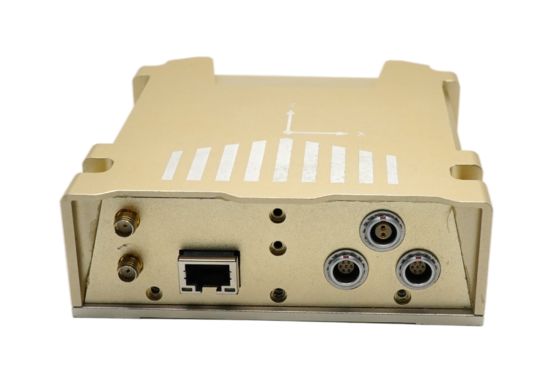

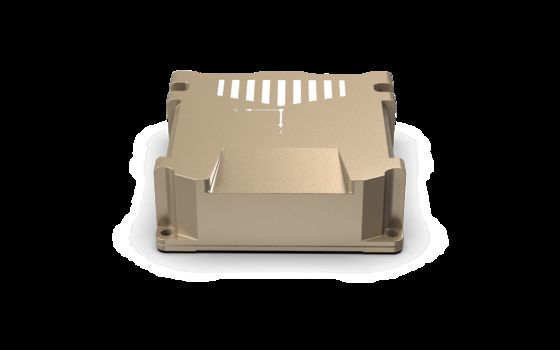

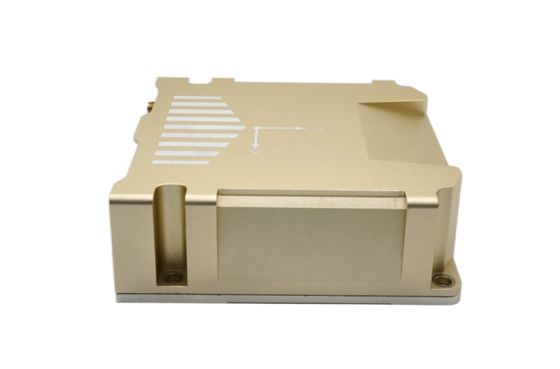

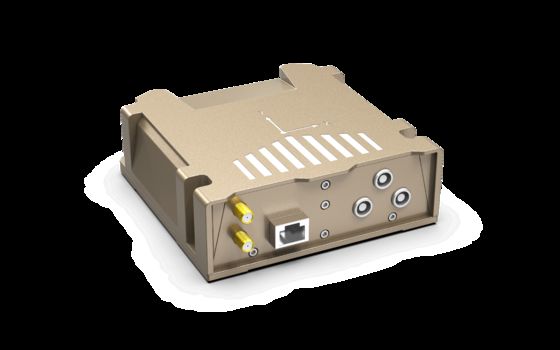

PBOX High-Precision Integrated Navigation System with MEMS-IMU and Heading Fiber-Optic Gyro

Name: PBOX High-Precision Integrated Navigation System with MEMS-IMU and Heading Fiber-Optic Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: PBOX
Price: 1350 USD
Availability: InStock

Merknaam:	Firepower
Modelnummer:	PBOX
MOQ:	1
Prijs:	1350$
Betalingsvoorwaarden:	L/C, D/P, T/T, Western Union
Toeleveringsvermogen:	500/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

X/y-as-gyro Geen bias-stabiliteit:

6,0º/u

Schaalfactor niet -lineariteit:

0,02% FS

Bandbreedte:

80Hz

Z-as gyrobereik:

250º/s

nul bias stabiliteit:

0,5º/u

Hoekige willekeurige wandeling:

0,02 º/u

vooringenomenheid van de versnellingsmeter:

00,07 mg

Accuraatheid van schaalfactoren:

0,3%

Verpakking Details:

Spons + doos

Levering vermogen:

500/maand

Productbeschrijving

High-Precision Integrated Navigation System with MEMS-IMU Fiber-Optic Gyro

Product Specifications

Parameter		Test conditions	Magnitude	Unit
X/y axis gyro	Dynamic measuring range		250	º/s
	Zero bias stability	Allan variance	6.0	º/h
	Zero bias stability	10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	13	º/h
	Zero bias	Zero bias range	±0.2	º/s
	Zero bias	Zero bias variation over full temperature range1	±0.2	º/s
	Scale factor	Scale factor accuracy	0.2	%
	Scale factor	Scale factor nonlinearity	0.02	%FS
	Bandwidth		80	Hz
Z-axis gyro	Dynamic measuring range		250	º/s
	Zero bias stability	10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	0.5	º/h
	Angular random walk		0.02	º/h
Accelerometer	Dynamic measuring range		4	g
	Zero bias stability	Allan variance	0.07	mg
	Zero bias stability	10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	0.15	mg
	Zero bias	Zero bias range	±3.5	mg
	Zero bias	Zero bias change in full temperature range, peak-to-peak value1	±3	mg
	Scale factor	Scale factor accuracy	0.3	%
	Scale factor	Scale factor nonlinearity	0.03	%FS
	Bandwidth		80	Hz

Product Overview

PBOX is a high-precision integrated navigation system independently developed by FIREPOWER. It has a built-in 6-axis MEMS-IMU and a built-in fiber-optic gyroscope in the heading axis. It achieves high-precision orientation and navigation in complex environments through multi-sensor fusion. The product has high reliability and strong environmental adaptability. The products can be widely used in intelligent driving, unmanned aerial vehicle, mapping, underwater vehicle, subway and other fields.

Key Features

Main functions of the integrated navigation system are as follows:

1) Integrated navigation and pure inertial navigation can be realized by using inertial device output and GNSS data.

2) In the effective GNSS environment, the static initial alignment can be realized, and the azimuth alignment accuracy is related to the baseline length of the dual-antenna.

3) It supports data binding and alignment and pure inertial calculation in the environment without GNSS.

4) The program and configuration parameters can be upgraded online through USB, network port and serial port.

5) Support network port data output.

6) Support can port wheel speedometer access.

Applications

UAVs (Unmanned Aerial Vehicles)
Guided missiles
Marine systems
Robotic systems
Various dynamic platforms
