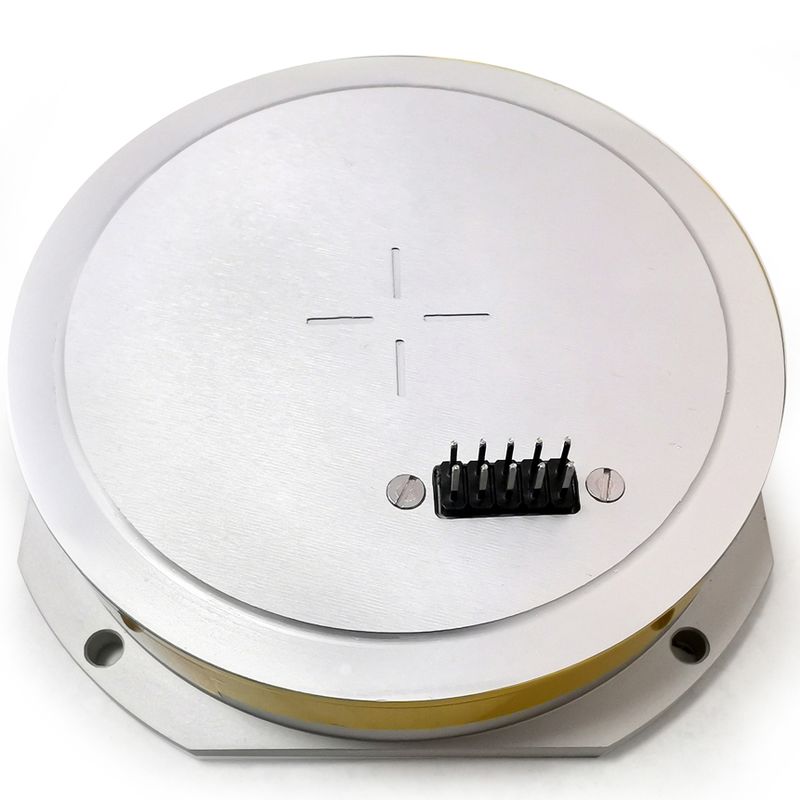

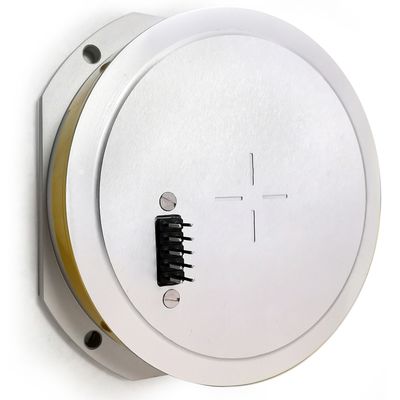

VG103LN Fiber Optic Gyro ±350°/s Range ≤1°/h Stability

Name: VG103LN Fiber Optic Gyro ±350°/s Range ≤1°/h Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1350 USD
Availability: InStock

Merknaam:	Firepower
Modelnummer:	MFOG-103
MOQ:	1
Prijs:	1350$
Betalingsvoorwaarden:	L/C,D/P,T/T,Western Union
Toeleveringsvermogen:	500/month

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Place of Origin:

China

Range:

±350°/s

Zero-bias stability( (10s, 1σ):

≤1°/h

Angular random walk:

≤0.02°/h

3dB Bandwidth:

≥1000Hz

Zero-bias repeatability( (1σ):

≤1°/h

Scale factor nonlinearity:

6±0.6mV°/s

Weight:

≤80g

Power Consumption:

≤1W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Markeren:

fiber optic gyro 350°/s range

fiber optic gyro 1°/h stability

high precision fiber optic gyro

Productbeschrijving

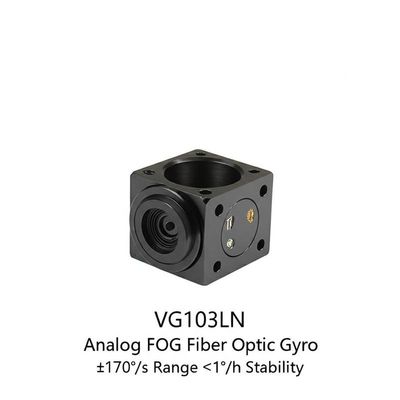

VG103LN Analog FOG Fiber Optic Gyro ±170°/s Range ≤1°/h Stability

Product Overview

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect and process phase differences between counter-propagating light beams for precise measurement.

Key Features

2025 Latest Open-loop Integrated Fiber Optic Gyroscope
Factory Direct Supply with competitive pricing
High-performance angular rate sensor integrating optics, mechanics, and electronics
Operates based on the Sagnac effect for precise measurement
Fully solid-state structure with no moving parts
Excellent reliability and long service life
High resistance to shock and vibration
Fast startup and compact design

Technical Specifications

Attribute	Value
Range	±350°/s
Zero-bias stability (10s, 1σ)	≤1°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤1°/h
Scale factor nonlinearity	6±0.6mV°/s
Weight	≤80g
Power Consumption	≤1W

Detailed Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton
Shell and other structural parts

Applications

Ideal for precision attitude measurement and control in:

UAVs (Unmanned Aerial Vehicles)
Guided missiles
Marine systems
Robotic systems
Various dynamic platforms
