Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Merknaam: Firepower
Modelnummer: MFOG-910
MOQ: 1
Prijs: 1000$
Betalingsvoorwaarden: L/C, D/P, T/T, Western Union
Toeleveringsvermogen: 500/maand
Gedetailleerde informatie
Plaats van herkomst:
China
Bereik:
± 240°/s
Nul-bias stabiliteit (10s, 1σ):
≤ 0,8°/h
hoekige willekeurige wandeling:
≤ 0,02°/h
3DB bandbreedte:
≥1000Hz
Nul-bias herhaalbaarheid ((1σ):
≤ 0,8°/h
Schaalfactor niet-lineariteit:
≤1000ppm
Gewicht:
≤150g
Stroomverbruik:
≤1.5w
Verpakking Details:
Spons + karton
Levering vermogen:
500/maand
Markeren:

Fizoptika VG910 fiber optic gyroscope

,

open-loop angular rate sensor

,

fiber optic gyro with warranty

Productbeschrijving
Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.

Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.

Performance Parameters
Serial Number Project Performance Indicators
1 Range (°/s) ±240
2 Scale factor (mV/°/s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, °/H) ≤0.8
5 Zero-bias repeatability (1σ, °/H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk (°/√H) ≤0.02
8 Power supply (V) 5+0.25+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
Product Diagrams

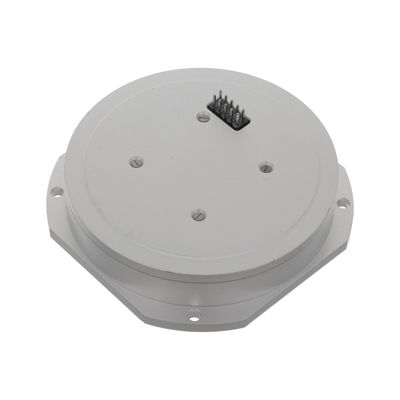

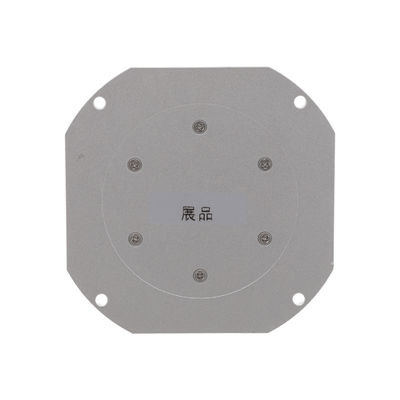

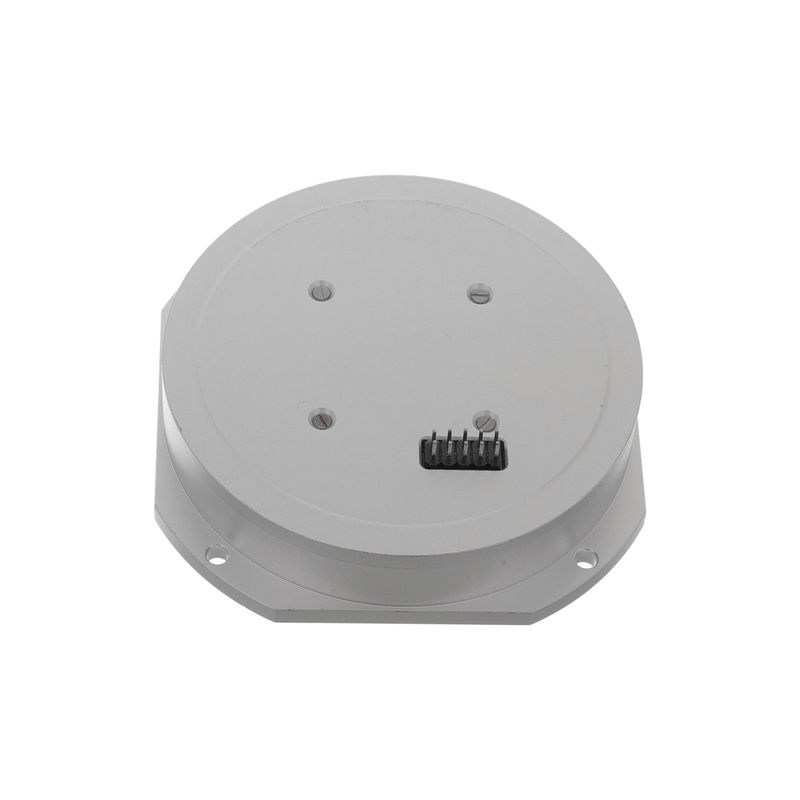

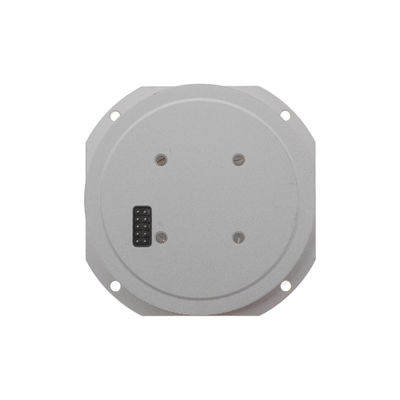

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 0 Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 1
